Shanghai CKF Bearing Co., Ltd.
|
Thrust Ball Bearings 51200 SKF NTN NSK KOYO FAG537675 521593A 517687A 522009 529469.N12BA 525837A
| Payment Terms: | T/T,L/C,D/A,D/P |
| Place of Origin: | Shanghai, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Model:SKF51336 SKF51336M SKF51334M SKF51336M SKF 52407SKPrice Range:0.1usd-1000usdStructure:Thrust Type:Ball
Product information

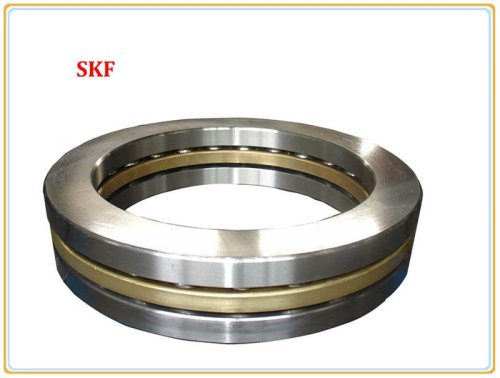

Thrust ball bearing
1)Thrust ball bearing ring is called the shaft washer and the seat, the seat inner diameter slightly larger than the shaft ring;
1)Thrust ball bearing ring is called the shaft washer and the seat, the seat inner diameter slightly larger than the shaft ring;
2) Part of the series bearing with spherical seat and aligning seat, you can play the role of aligning;
3)The general use of steel stamping cage, the rolling element and cage fixed as a whole;
3)The general use of steel stamping cage, the rolling element and cage fixed as a whole;
4) The contact angle is 90 °, subject to pure axial load;
5) The double-row bearings composed of two seat, and a shaft ring, can accommodate axial loads;
5) The double-row bearings composed of two seat, and a shaft ring, can accommodate axial loads;
Thrust ball bearings consist of two precision chrome steel washers (ring) and a ball complement spaced by bronze retainer. They can be supplied with or without radius ball grooves in the rings. Thrust bearings are used under purely axial loads.Thrust ball bearings can handle loads in the axial direction only. Bearing rings mounted on the shaft are called shaft washers, and those mounted in the housing are called housing washers. Both washers contain raceways for the balls.Thrust ball bearings are available as both single and bi-directional types. The bi-directional thrust bearing incorporates a third washer and an additional set of balls. This center washer is located in the axial direction by a shaft shoulder and sleeve.Care must be taken in handling to prevent damage to the separable rings and ball assemblies.
Our adventage
Brand:SKF NSK NTN KOYO IKO NACHI TIMKEN
Quality standard:ISO9001:2000
Certificate : Certificate of origin
Delivery Date:delivery in time
Experience :More years sale experiences
Price:competitive price and good OEM service.
Product series
Single row thrust ball bearings series:
Flat seat series: 511xx, 512xx, 513xx, 514xx, 29xx, 39xx.
Spherical seat series: 532xx, 533xx, 534xx.
Spherical seat series: 532xxU, 533xxU, 534xxU.
Double row thrust ball bearings of series:
Flat seat series: 522xx, 523xx, 524xx.
Spherical seat series: 542xx, 543xx, 544xx.
Spherical seat series: 542xxU, 543xxU, 544xxU.
Micro-and inch series:
The mini-series: Fxx-xx, such as the F10-18 10mm inner diameter, outer diameter 18mm.
Inch Series: Ox, such as O-4, the diameter size 4 × 25.4/8mm.
